Shenzhen Fubang Wire harness Co.,Ltd
Modello: 257-169
The file is encrypted. Please fill in the following information to continue accessing it
| Item | Description |

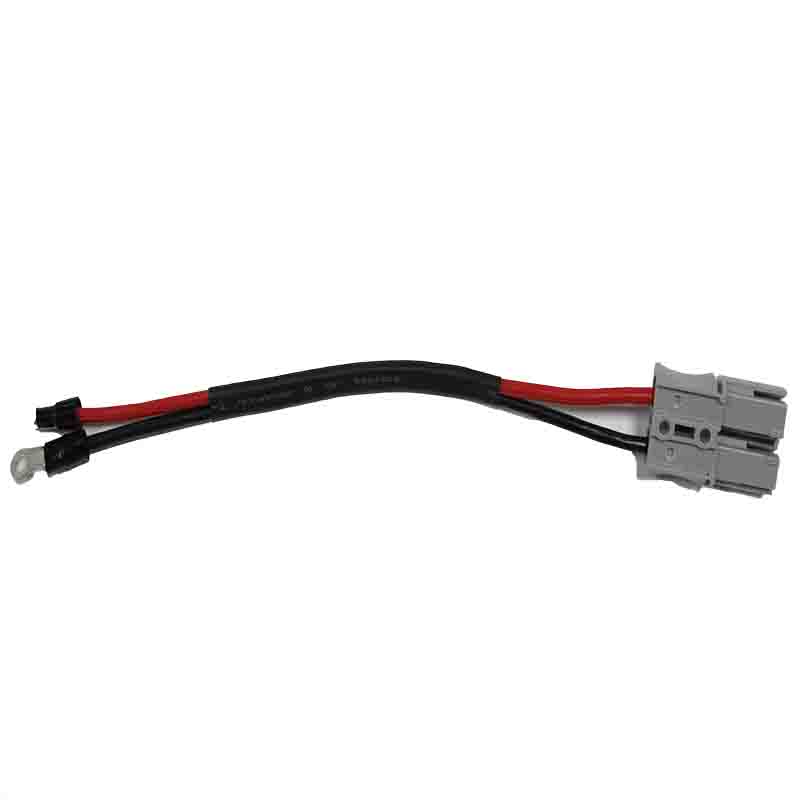

| Product Name | High-voltage cable (High Voltage Module Output Interface, ROHS compliant) |
| Application Area | Power output for high voltage modules, high voltage circuit connection for industrial equipment, power transmission for high-power electrical devices (suitable for 40A/600V high voltage electrical scenarios) |
| Appearance Color | Wires: Red (UL3239 12AWG), Black (UL3239 12AWG) Plug: Anderson 40A 600V gray housing Sheath: Black heat shrink tubing (OD=7.0mm) Terminal: Metallic silver (ring terminal with black nylon sheath) |
| Specification | 2P (2-core) design, compliant with ROHS; One end: Anderson 2P plug (40A 600V, model PMDB40),One end: Ring terminal (model RVN3.5-4, suitable for One end: Anderson 2P plug (40A 600V, model PMDB40),Wire model: UL3239 12AWG high temperature silicone wire, OD=3.5mm 14-12AWG wires, with black nylon sheath);Wire model: UL3239 12AWG high temperature silicone wire, OD=3.5mm |
| Core Features | High temperature resistant silicone wire, suitable for high voltage and high current applications;Anderson plug for easy plugging and strong current-carrying capacity (40A);Firm crimped ring terminal with nylon sheath for improved insulation and protection;Black heat shrink tubing wraps the wire harness to enhance wear resistance and anti-aging performance. |
